Applicability
Instant noodle cup or bowel, milk cup, carton, wallpaper rolls, cosmetic bottle, filter, etc.

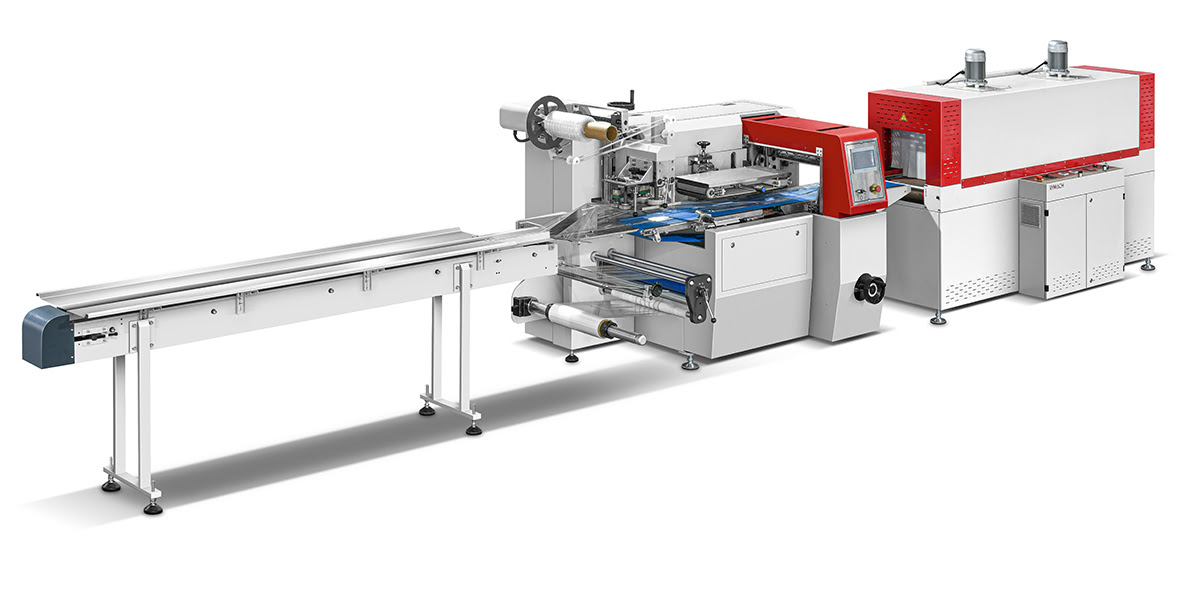

Electrostatic adherence shrink packing machine adopts non-heating center seal technology to replace heating device, the power consumption of the whole machine can be reduced by 1000W. Moreover, it can seal without waste film.
|
MODEL
|
RSL-720
|
|
Sealing Type
|
High Speed Flow Type Sealing
|
|
Installed Power
|
Sealer: 220V/380V; 50-60Hz; 1Phase/3Phase
|
|
Packing Capacity
|
50-150 Packs per Minute (Depends on Product Size)
|
|
Sealing Height
|
5-35mm; 35-60mm; 60-90mm; 90-130mm
|
|
Packing Width
|
20-180MM
|
|
Packing Length
|
50-450MM
|
|
Packing Size
|
Width + Height ≤ 450MM
|
|
Film Type
|
Single Layer POF Film
|
|
Max Film Roll Size
|
590MM (Width) X 280MM (Outer Diameter)
|
|
Working Height
|
780-850 MM
|
|
Sealing Machine Dimensions
|
4930 X 1130 X 1500 MM
|
|
Sealing Machine Weight
|
835kg
|
|
MODEL
|
RT-3525
|
|
Conveyor
|
Chains with Rotating Silicon Coated Rods/ Mesh Belt
|
|
Tunnel Oven Size
|
2000MM (L), Entrance 350(W) X 250(H) MM
|
|
Rated Power Consumption
|
Max. 16 KW
|
|
Working Height
|
780 - 850 MM
|
|
Machine Material
|
Carbon Steel
|
|
Tunnel Machine Dimensions
|
2400 X 600 X 1550 MM
|
|
Tunnel Weight
|
355kg
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
Part 4 Bag Collecting Machine
|
|
|
|
The new type bag collecting machine adopts the visual operation of the computer display screen. According to the need, the pre-set quality can be as many as one dozen, which is convenient to collect neat bag.
|
